Thanks !
I´m thinking audison 6.5” Component Set for front and rear
http://caraudiomag.com/sites/default...ponent_set.jpg
Audison - Music Expression
and this amp Audison - Music Expression
and then if I´m not satisfied I can always add a subwoofer later, which will be a challenge because of the lack of room :)
Well damn it is exactly the same size as my HKS evc 6 boost controller that i mounted inside one of the center vents all I need to do is to paint it glossy black and it makes a perfect couple !Quote:
Originally Posted by 2fnloud
not my pic but my install looks exactly the same
http://i29.photobucket.com/albums/c2.../100_3617a.jpg
http://www.udc-caraudio.com/public/i...280x1024_s.jpg
I found these unused still in unopened box, These are from the late nineties
"JBL Century C630s 3-way Component system. Probably one of the best JBL ever produced. These were produced in very small quantities ! Brand New as seen in the photos.
made in Europe made in France so not the todays made in China JBL
Titanium tweeter, titanium reinforced power pmp polymer woofer cone..."
He is asking 250$ - very reasonable price but I have no idea how much these retail at, when these were new
the combined JBL tweeter/mid is a perfect fit, OEM tweeter hole is 75mm should be exactly the same size !
http://magnitola.com/attachments/aku...ry-c630s-1.jpg
http://magnitola.com/attachments/aku...ry-c630s-3.jpg
http://magnitola.com/attachments/aku...ry-c630s-2.jpg
http://magnitola.com/attachments/aku...ry-c630s-4.jpg
http://i51.photobucket.com/albums/f3...3/IMG_0859.jpg
http://i51.photobucket.com/albums/f3...3/IMG_0854.jpg
Audison also makes 3 way sets but prices start at 4200$ + 1000$ "made to specs crossovers" way too expensive for me
would it be reasonable to put those JBL 3 ways to front doors and two JL 6.5" Subwoofers to rear
http://www.dealercostcaraudio.com/im...il/6W3v3-4.jpg
"* Sensitivity: 80.49 dB
* RMS Power Range : 40-150 Watts
* Peak Power Handling: 300 Watts
* Impedance: 4 Ohm
* Low Frequency response: 30 Hz
* High Frequency Response: 300 Hz
* Diameter: 6.5 Inch
Features
* 6.5" 4-ohm subwoofer
* Mineral-filled polypropylene cone with nitrile-butylene rubber surround
* Vented Reinforcement Collar - reinforces the critical cone / spider / voice coil joint, resulting in superior mechanical integrity
* DMA Optimized Motor System - Dynamic Motor Analysis system aimed at improving dynamic motor behavior
* Elevated Frame Cooling - delivers cool air through slots directly above the top-plate to the voice coil of the speaker
* Spider and Lead Wire Assembly - Nickel-plated brass push terminals combine with strain relief features to ensure solid contact and lead-wire reliability
* Surround Stress-Relief - resulting in longer life and more consistent surround behavior
* Floating Cone Attach Method (FCAM�) - ensure concentricity of the surround, spider and voice coil without torquing the suspension to achieve it
* Customizable Trim Ring
* Top-mount depth: 4-3/16"
* Sealed box volume: 0.15 cubic feet"
http://img715.imageshack.us/img715/7898/imag0279hi.jpg
Sound deadening
high water resistance
Same stuff that many car, train and aircraft manufacturers use.
I love the 3-way set up, If you have the means, get them.
The 6.5 woofer, are you talking about in the rear speaker location? If so I do not think that you will have the mounting depth for that magnet. My 6x9's didn't set right on the plastic enclosure. I ended up using non-hardening modeling clay to seal up the void.
Can bee seen here
I would hold off on subs, or consider these, You will not get teeth jarring bass from them, but you also only need 180W RMS (I know they are only 90W, but you want the headroom) so you will not need a huge amp to push them.
If that isn't enough bass then I can recommend a little more that would go the the extreme rear corners of the hatch.
would you rather use some 2 way - 3 way 6x9 at the back, Who makes the best 6X9 speakers? :D ? I may have found a way to add 2 8" subs to the trunk
IF I wasn't going 5.1 DTS moble theater, I would have nothing in the rear.
yes I´m talking about the OEM rear speaker locationsQuote:
Originally Posted by 2fnloud
"Tang Band W69-1042J 6"x9" Subwoofer
The oval shaped frame of the W69-1042 gives you the surface area of a typical 8" driver in the footprint of a 6-1/2". Perfect for constructing a narrow-baffle subwoofer, or for automotive installs in factory 6" x 9" locations. High power handling and long excursion for excellent low-bass performance.
Specifications: • Power handling: 90 watts RMS/170 watts max • VCdia: 1-1/2" • Impedance: 8 ohms • Re: 6.5 ohms • Frequency range: 35-350 Hz • Fs: 35 Hz • SPL: 87 dB 2.83V/1m • Vas: 1.34 cu.ft. • Qms: 6.05 • Qes: 0.37 • Qts: 0.35 • Xmax 7 mm • Dimensions: Overall Diameter: 6-1/2" x 9-1/4", Mounting Depth: 4-3/16". "
These tang bangs have exactly the same mounting depth as JL 6.5"s
Tang Bang 6.5 sub with mounting depth little less than 4"
http://www.parts-express.com/pe/show...number=264-832

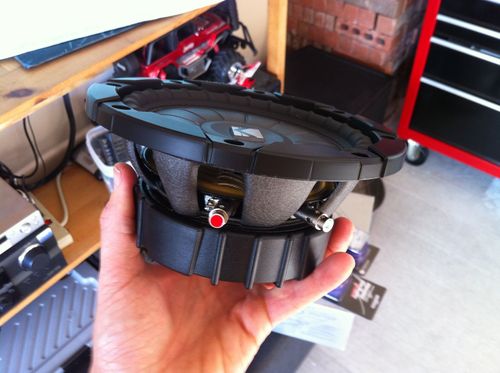

then there are also these
http://ecx.images-amazon.com/images/I/51W-VxaKJfL.jpg
mounting depth less than 3"
http://www.amazon.com/gp/product/B00...GEF2EG7JQYRGTG
